SEWAGE TREATMENT SYSTEMS

Perfectly combined to meet all your needs

Thanks to our design skills and to the experience gained from the application of our products in many different installations, we are able to analyze the customer’s needs and develop the most suitable tailor-made system for sewage treatment. The technical and functional features suitable for the difficult conditions of the zootechnical sector can also be applied to the industrial field.

Zootechnical waste water treatment

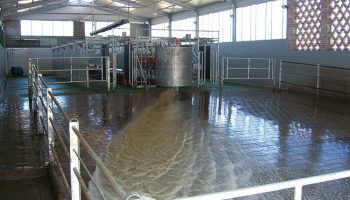

Sistema automatizzato per lavaggio pavimento sala d’attesa mungitura.

Automated system for milking parlor’s floor cleaning

Sistema manuale / automatizzato per la miscelazione delle vasche di raccolta.

Manual / automated system for slurry mixing in collection tanks.

Sistema automatizzato per la separazione dei reflui.

Automated system for waste water separation.

Sistema manuale / automatizzato per il ricircolo dei liquami sotto grigliato.

Manual / automated system for under-grate slurry recirculation.

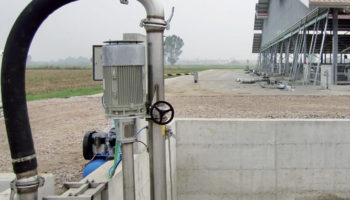

Sistema manuale / automatizzato per il trasferimento dei liquami.

Manual / automated system for slurry transfer.

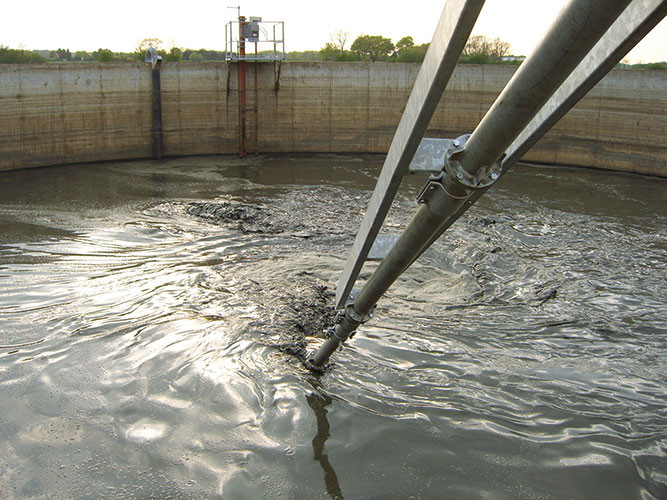

Sistema manuale / automatizzato per la miscelazione delle vasche di stoccaggio.

Manual / automated system for slurry mixing in storage tanks.

Sistema automatizzato per il ricircolo del canale collettore dei raschiatori.

Automated system for scrapers’ canal recirculation.

Sistema manuale/automatizzato per trasferimento e gestione dei reflui nell’impianto di biogas.

Manual / automated system for waste water transfer and treatment in the biogas plant.

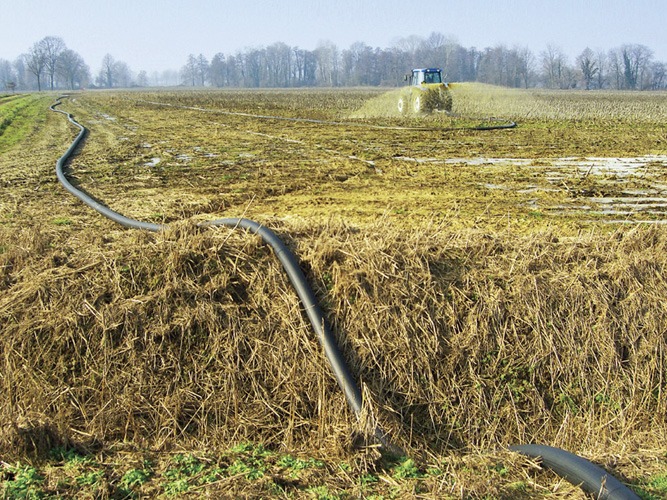

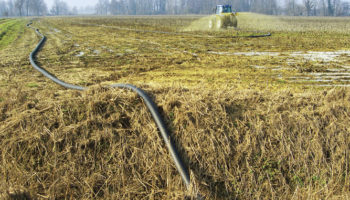

Sistema ombelicale per la distribuzione dei reflui.

Umbilical system for slurry distribution.

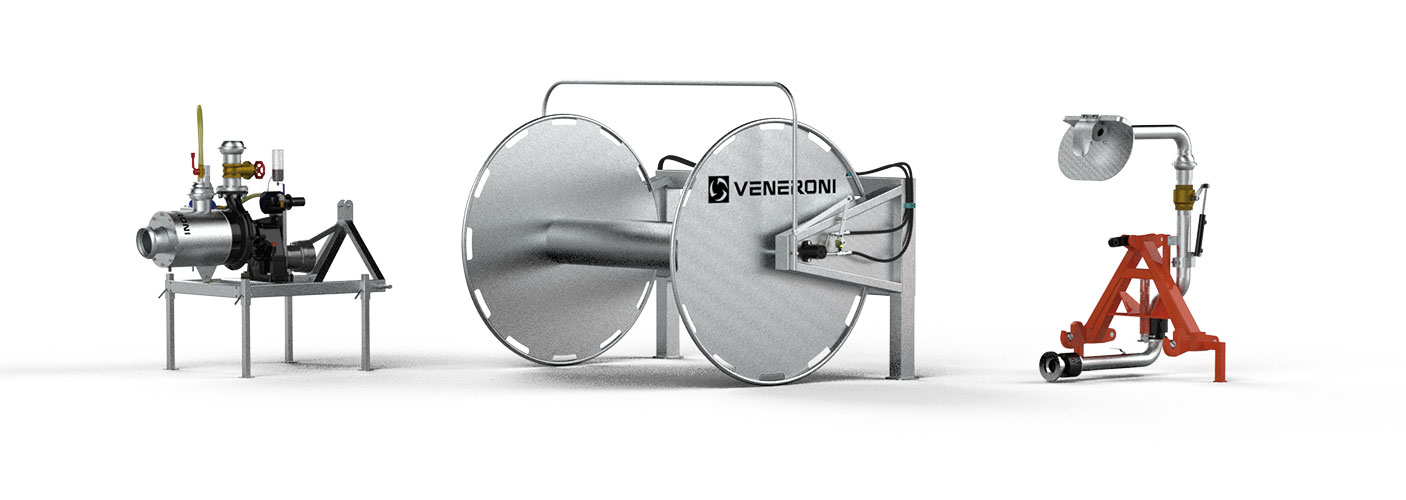

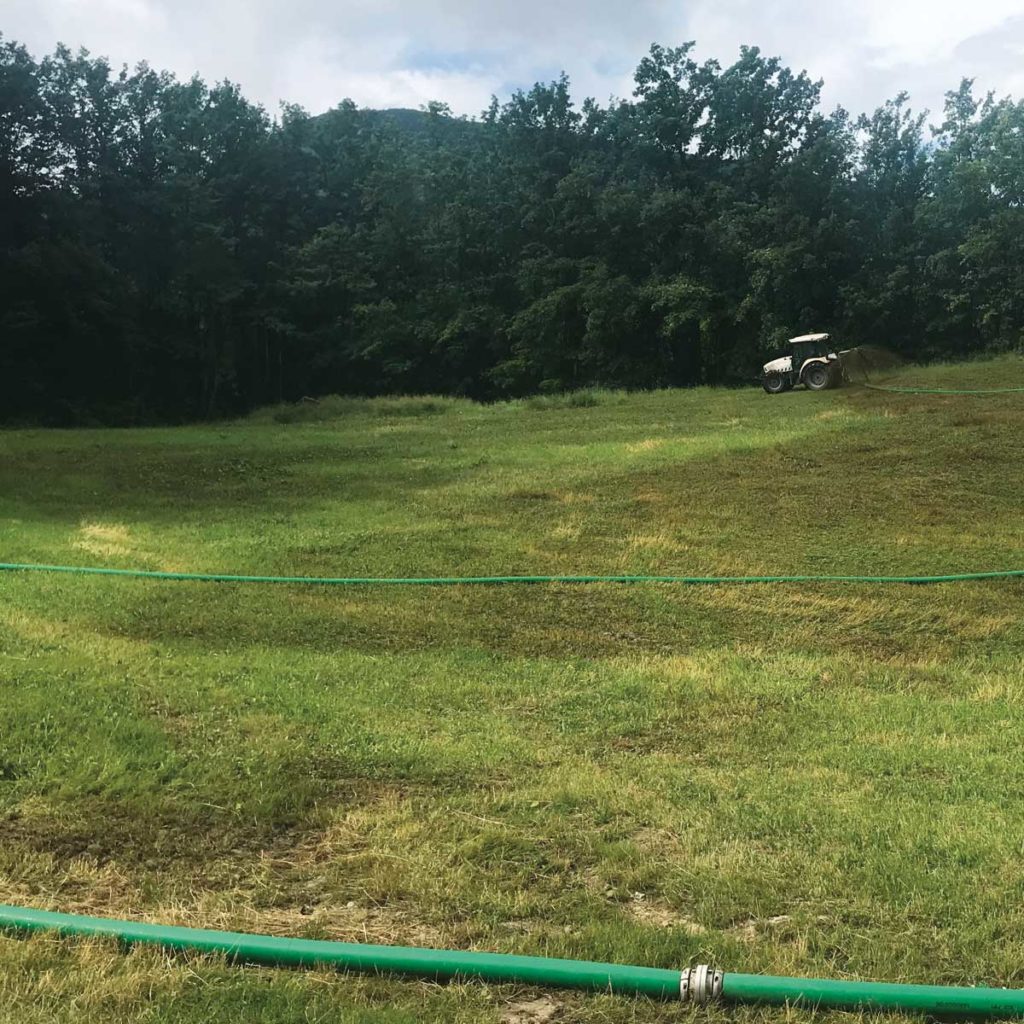

UMBILICAL SYSTEM

After collection from the storage tanks, the LKT pump supplies slurry into the underground distribution network or directly into the hose. The latter, spread out along a side of the distribution area with the reel hose-coiler and then connected to the spreader, is pulled along the whole field, allowing a fast and uniform slurry distribution, using a lightweight equipment.

Ombelicale

HWN

Reel hose-coiler

Drive Tractor
Installation Mobile transported by tractor
Metallurgy Hot galvanized carpentry
Series feature Double hydraulic motor for reel drive
Max capacity (HILCOFLEX PU D 102) m] 1000

TDN

Spreader

Drive Tractor
Installation Mobile transported by tractor
Metallurgy Hot galvanized carpentry, painting with epoxy primer and polyurethane enamel
Series feature Hooking system for reel hose-coiler HWN

HILCOFLEX

Polyurethane hose

HILCOFLEX PU D 102 D 127
Ø diameter mm 102 127
Working pressure bar 17 17
Max Breaking strenght kg 13.800 17.000
HILCOFLEX PU DRAG D 102 D 127
Ø diameter mm 102 127
Working pressure bar 17 17
Max Breaking strenght kg 13.800 20.500
